  • Product OverviewDownloadVideo

    Micropositioner

    Standard/Sizes

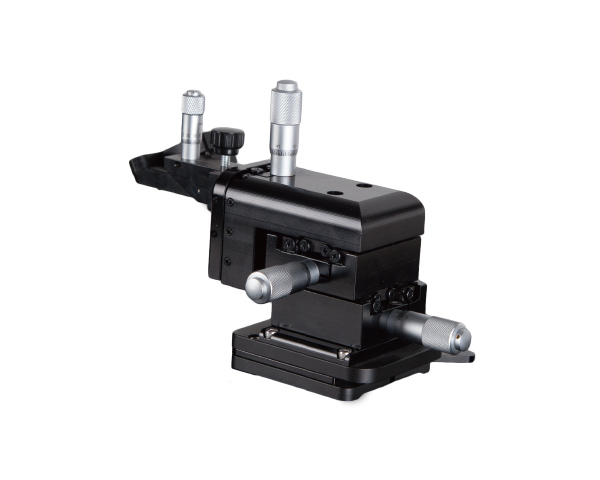

    SS-700

    Submicron circuit/RF test Micropositioner

    Specification:X-y-z travel direction;8 x 8 x 8mm;Linear motion;Lead screw precision;700 Thread / Inch;Movement accuracy;0.1 microns

    Size:148mm long *120mm wide *140mm high; Weighs 1500 grams

    Features:Submicron process IC circuit testing;Linear, recoilless movement;Can be used with coaxial/triaxial probe fixture;The fixture can be tilted at a range of 30 degrees;Tungsten probes can be used;Rf pins can be configured in four directions east/south/west/North;Rf testing capability;Dc to 40 GHZ ~ 120 GHZ;Calibration tablets and calibration software can be used together;45 degree connection between probe interface and cable, no L-type adaptor required;The probe can be removed for maintenance;Fixed device with RF test line.

    SS-100

    Submicron circuit/RF test Micropositioner

    Specification:X-y-z travel direction;12 x 12x 12mm;Linear motion;Lead screw precision;100 Thread / Inch;Movement accuracy;0.7 microns

    Size:115mm long *100mm wide *112mm high;About 1000 grams

    Features:● Submicron process IC circuit testing; ● Linear, recoilless movement; ● It can be used with coaxial/triaxial probe fixture; ● The fixture can be tilted at a range of 30 degrees; ● Tungsten probes can be used; ● Rf pins can be configured in east/south/west/North directions; ● Rf test capability; ● DC to 40GHz~120GHz; ● Calibration chip and calibration software can be used together; ● Probe interface and cable connection 45 degrees, no L-type adapter; ● The probe can be removed for maintenance; ● Fixed device with RF test line.

    SS-40-T

    Circuit/RF test pins

    Specification:X-y-z travel direction;12 x 12x 12mm;Linear motion;Lead screw precision;40 Thread / Inch;Movement accuracy;2 microns

    Size:64mm long *47mm wide *66mm high; About 200 grams

    Features:● Linear movement; ●I/O Pad spot measurement; ● Circuit point measurement; ● Radio frequency test; ● Smaller volume; ● It can be used with coaxial/triaxial probe fixture.

    SS-40

    I/O Pad/Electro-Optics Test needle holder

    Specification:X-y-z travel direction;12 x 12x 12mm;Linear motion;Lead screw precision;40 Thread / Inch;Movement accuracy;10 microns

    Size:64mm long *47mm wide *55mm high; About 175 grams

    Features:● Affordable price; ● Linear movement; ●I/O Pad spot measurement; ● Point measurement of photoelectric devices; ● Smaller volume; ● It can be used with coaxial/triaxial probe fixture.

    Annex

    Triaxial probe clamp
    Radiofrequency probe
    Coaxial probe jig
    Optical fiber probe
    Magnetic base, magnetic flip base, vacuum base
    Low current/capacitance point measuring fittings
    Electric pin holder upgrade
    High pressure accessories
