Probe Holder

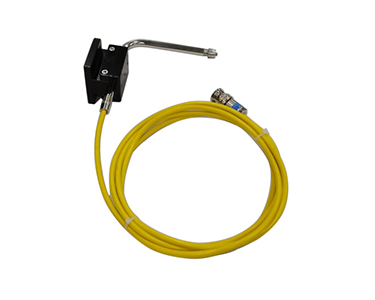

Triaxial Probe Holder
Specification:The Probe Holder is a mechanical device attached to the pin seat to connect the probe and the signal cable for fixing the probe and extracting the signal.
Size:Please first select the model of pin seat according to the size of the test electrode, and then determine the use of ordinary cable, coaxial cable or three-axis cable at the back end of the probe fixture according to the telecom test accuracy.
Features:Triaxial Probe Holder: The triaxial probe jig rear end is connected with a 1.2m long triaxial cable with triaxial (male) interface, and the telecommunication test accuracy is better than 100fA when using standard shielding box.
Probe Holder

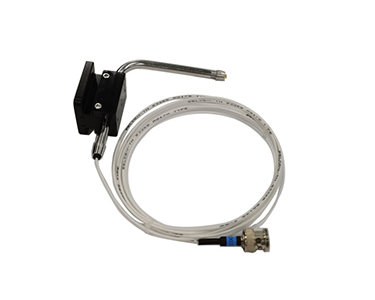

Coaxial Tip Holder
Specification:The Probe Holder is a mechanical device attached to the pin seat to connect the probe and the signal cable for fixing the probe and extracting the signal.
Size:Please first select the model of pin seat according to the size of the test electrode, and then determine the use of ordinary cable, coaxial cable or three-axis cable at the back end of the probe fixture according to the telecom test accuracy.
Features:The telecommunication test precision of the 1.2m coaxial cable with the BNC interface at the back end of the coaxial probe jig is better than 10 pA when the standard shielding box is used.
Annex
- Selection steps
First, select the model of the pin seat according to the size of the test electrode, and then determine the use of ordinary cable, coaxial cable or three-axis cable at the back end of the probe fixture according to the telecom test accuracy. Finally, pay attention to the mechanical precision of the pin seat when choosing whether to use spiral, spring or tubular for the mechanical fixed parts of the fixture.
For more information about this product, you can download the product manual.
